Triplet example
This triplet design, used in Jose Sasian’s Lens Design OPTI 517 course at the Univ. of Arizona, is attributed to Geiser.
%matplotlib widget
isdark = False
Setup the rayoptics environment
The environment.py
module imports many useful classes and functions. All the symbols defined in the module are intended to be imported into a rayoptics interactive session.
from rayoptics.environment import *
Create a new model
Create a new OpticalModel
instance and set up some convenient aliases to important constituents of the model.
opm = OpticalModel()
sm = opm['seq_model']
osp = opm['optical_spec']
pm = opm['parax_model']
em = opm['ele_model']
pt = opm['part_tree']
ar = opm['analysis_results']
Define first order aperture and field for system
The pupil and field specifications can be specified in a variety of
ways. The key
keyword argument takes a list of 2 strings. The first
string indicates whether the specification is in object or image space.
The second one indicates which parameter is the defining specification.
The PupilSpec can be defined in object or image space. The defining
parameters can be pupil
, f/#
or NA
, where pupil
is the
pupil diameter.
osp['pupil'] = PupilSpec(osp, key=['object', 'pupil'], value=12.5)
The FieldSpec can be defined in object or image space. The defining
parameters can be height
or angle
, where angle
is given in
degrees. The is_relative
keyword argument may be used to specify
fields as a fraction of the maximum value
osp['fov'] = FieldSpec(osp, key=['object', 'angle'], value=20.0, flds=[0., 0.707, 1.], is_relative=True)
The WvlSpec defines the wavelengths and weights to use when evaluating the model. The wavelength values can be given in either nanometers or a spectral line designation.
osp['wvls'] = WvlSpec([('F', 0.5), (587.5618, 1.0), ('C', 0.5)], ref_wl=1)
Define interface and gap data for the sequential model
opm.radius_mode = True
sm.gaps[0].thi=1e10
sm.add_surface([23.713, 4.831, 'N-LAK9', 'Schott'])
sm.add_surface([7331.288, 5.86])
sm.add_surface([-24.456, .975, 'N-SF5,Schott'])
sm.set_stop()
sm.add_surface([21.896, 4.822])
sm.add_surface([86.759, 3.127, 'N-LAK9', 'Schott'])
sm.add_surface([-20.4942, 41.2365])
Update the model
opm.update_model()
List the sequential model
sm.list_model()
r t medium mode zdr sd
Obj: 0.000000 1.00000e+10 air 1 3.6397e+09
1: 23.713000 4.83100 N-LAK9 1 10.009
2: 7331.288000 5.86000 air 1 8.9482
Stop: -24.456000 0.975000 N-SF5 1 4.7919
4: 21.896000 4.82200 air 1 4.7761
5: 86.759000 3.12700 N-LAK9 1 8.0217
6: -20.494200 41.2365 air 1 8.3321
Img: 0.000000 0.00000 1 18.217
Draw a lens picture
layout_plt = plt.figure(FigureClass=InteractiveLayout, opt_model=opm, is_dark=isdark).plot()
em.list_model()
0: Object (DummyInterface): Surface(lbl='Obj', profile=Spherical(c=0.0), interact_mode='dummy')
1: E1 (Element): Element: Spherical(c=0.042170961076202926), Spherical(c=0.00013640168003221264), t=4.8310, sd=10.0087, glass: N-LAK9
2: E2 (Element): Element: Spherical(c=-0.04088976120379457), Spherical(c=0.04567044208987943), t=0.9750, sd=4.7919, glass: N-SF5
3: E3 (Element): Element: Spherical(c=0.011526181721781025), Spherical(c=-0.04879429301948844), t=3.1270, sd=8.3321, glass: N-LAK9
4: Image (DummyInterface): Surface(lbl='Img', profile=Spherical(c=0.0), interact_mode='dummy')
pm.list_model()
ax_ht pr_ht ax_slp pr_slp power tau index type
0: 0 -3.6397e+09 6.25e-10 0.36397 0 1e+10 1.00000 dummy
1: 6.25 -4.25088 -0.182126 0.487842 0.02914022 2.85689 1.69100 transmit
2: 5.72969 -2.85718 -0.181586 0.487573 -9.425384e-05 5.86 1.00000 transmit
3: 4.66559 3.53405e-07 -0.0532508 0.487573 -0.02750683 0.582887 1.67271 transmit
4: 4.63455 0.2842 0.0891357 0.496304 -0.03072283 4.822 1.00000 transmit
5: 5.06436 2.67738 0.0488 0.47498 0.007964615 1.8492 1.69100 transmit
6: 5.1546 3.55571 -0.124998 0.355092 0.03371696 41.2365 1.00000 transmit
7: 0.000143648 18.1985 -0.124998 0.355092 0 0 1.00000 dummy

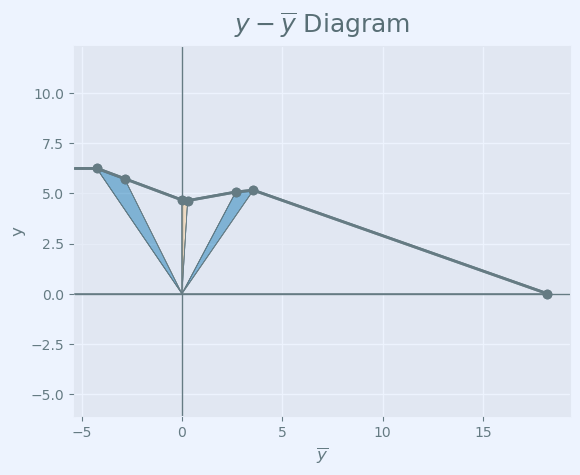

Draw a \(y-\overline{y}\) diagram
yybar_plt = plt.figure(FigureClass=InteractiveDiagram, opt_model=opm, dgm_type='ht',
do_draw_axes=True, do_draw_frame=True, is_dark=isdark).plot()

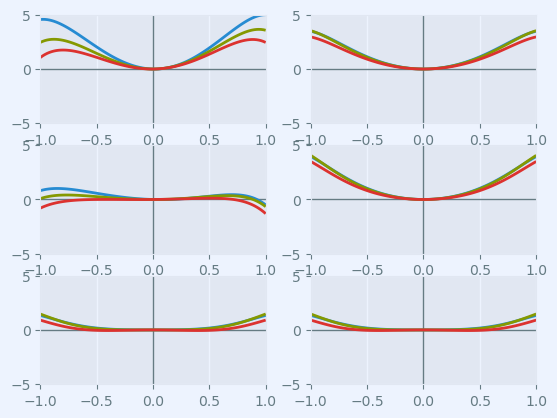

Plot the transverse ray aberrations
abr_plt = plt.figure(FigureClass=RayFanFigure, opt_model=opm, data_type='Ray', scale_type=Fit.All_Same, is_dark=isdark).plot()
Plot the wavefront aberration
wav_plt = plt.figure(FigureClass=RayFanFigure, opt_model=opm, data_type='OPD', scale_type=Fit.All_Same, is_dark=isdark).plot()
List the optical specifications
pm.first_order_data()
efl 50
ffl -37.1
pp1 12.9
bfl 41.24
ppk 8.763
f/# 4
m -5e-09
red -2e+08
obj_dist 1e+10
obj_ang 20
enp_dist 11.68
enp_radius 6.25
na obj 6.25e-10
n obj 1
img_dist 41.24
img_ht 18.2
exp_dist -10.01
exp_radius 6.406
na img -0.124
n img 1
optical invariant 2.275
List the paraxial model
pm.list_model()
ax_ht pr_ht ax_slp pr_slp power tau index type
0: 0 -3.6397e+09 6.25e-10 0.36397 0 1e+10 1.00000 dummy
1: 6.25 -4.25088 -0.182126 0.487842 0.02914022 2.85689 1.69100 transmit
2: 5.72969 -2.85718 -0.181586 0.487573 -9.425384e-05 5.86 1.00000 transmit
3: 4.66559 3.53405e-07 -0.0532508 0.487573 -0.02750683 0.582887 1.67271 transmit
4: 4.63455 0.2842 0.0891357 0.496304 -0.03072283 4.822 1.00000 transmit
5: 5.06436 2.67738 0.0488 0.47498 0.007964615 1.8492 1.69100 transmit
6: 5.1546 3.55571 -0.124998 0.355092 0.03371696 41.2365 1.00000 transmit
7: 0.000143648 18.1985 -0.124998 0.355092 0 0 1.00000 dummy
pm.list_lens()
ax_ray_ht ax_ray_slp
0: 0 6.25e-10
1: 6.25 -0.182126
2: 5.72969 -0.181586
3: 4.66559 -0.0532508
4: 4.63455 0.0891357
5: 5.06436 0.0488
6: 5.1546 -0.124998
7: 0.000143648 -0.124998
pr_ray_ht pr_ray_slp
0: -3.6397e+09 0.36397
1: -4.25088 0.487842
2: -2.85718 0.487573
3: 3.53405e-07 0.487573
4: 0.2842 0.496304
5: 2.67738 0.47498
6: 3.55571 0.355092
7: 18.1985 0.355092
power tau index type
0: 0 1e+10 1.00000 dummy
1: 0.02914022 2.8569 1.69100 transmit
2: -9.425384e-05 5.86 1.00000 transmit
3: -0.02750683 0.58289 1.67271 transmit
4: -0.03072283 4.822 1.00000 transmit
5: 0.007964615 1.8492 1.69100 transmit
6: 0.03371696 41.236 1.00000 transmit
7: 0 0 1.00000 dummy
Third Order Seidel aberrations
Computation and tabular display
to_pkg = compute_third_order(opm)
to_pkg
S-I | S-II | S-III | S-IV | S-V | |
---|---|---|---|---|---|
1 | 0.027654 | 0.019379 | 0.013581 | 0.089174 | 0.072010 |
2 | 0.022082 | -0.059501 | 0.160327 | -0.000288 | -0.431229 |
3 | -0.105156 | 0.137692 | -0.180295 | -0.085097 | 0.347506 |
4 | -0.045358 | -0.076796 | -0.130024 | -0.095046 | -0.381069 |
5 | 0.007942 | 0.028382 | 0.101431 | 0.024373 | 0.449596 |
6 | 0.103810 | -0.050068 | 0.024148 | 0.103180 | -0.061411 |
sum | 0.010973 | -0.000912 | -0.010832 | 0.036297 | -0.004597 |

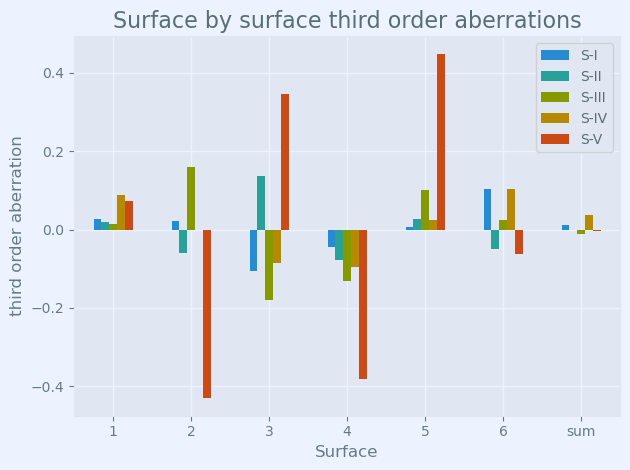

Bar chart for surface by surface third order aberrations
fig, ax = plt.subplots()
ax.set_xlabel('Surface')
ax.set_ylabel('third order aberration')
ax.set_title('Surface by surface third order aberrations')
to_pkg.plot.bar(ax=ax, rot=0)
ax.grid(True)
fig.tight_layout()
convert aberration sums to transverse measure
ax_ray, pr_ray, fod = ar['parax_data']
n_last = pm.sys[-1][mc.indx]
u_last = ax_ray[-1][mc.slp]
to.seidel_to_transverse_aberration(to_pkg.loc['sum',:], n_last, u_last)
TSA -0.043893
TCO 0.010944
TAS -0.015198
SAS -0.101860
PTB -0.145190
DST 0.018387
dtype: float64
convert sums to wavefront measure
central_wv = opm.nm_to_sys_units(sm.central_wavelength())
to.seidel_to_wavefront(to_pkg.loc['sum',:], central_wv).T
W040 2.334457
W131 -0.776108
W222 -9.218154
W220 10.834770
W311 -3.911650
dtype: float64
compute Petzval, sagittal and tangential field curvature
to.seidel_to_field_curv(to_pkg.loc['sum',:], n_last, fod.opt_inv)
TCV 0.000734
SCV 0.004921
PCV 0.007014
dtype: float64
Save the model
opm.save_model('Sasian Triplet')
